Avenger Fire Rated GU10 Tilt Downlight No Bezel
Product Code AGGU23FR
Available for Delivery only, change to Fast Delivery Service
£5.95
exc VAT
£7.14 : inc VAT
£7.14
inc VAT
£5.95 : exc VAT
Avenger fire rated tilt downlight, excluding bezel. Providing a streamlined, simple installation for fast fitting, alongside a stylish, modern aesthetic and recess mounting to fit seamlessly throughout any home. Perfect Downlight for contractors and homeowners.
Shortened the can, allowing for use in shallower voids. The downlight has also been narrowed and tapered, for easier entry into the ceiling and improving the mobility of the spring clips, further streamlining the installation process. The quick connect press fit terminal block allows for tool free installation and provides 180 ° access to the wiring, making the connection process as simple and efficient as possible
downlight is specially designed to be insulation coverable, shaped to allow for air flow and provide ventilation for the LED, lengthening its life span, making the downlight perfect for usage in insulated ceilings. 30, 60 and 90 minute fire rated, helping to prevent the spread of fire throughout your home and provide peace of mind for you and your family.
Flexible, allowing you the choice of GU10 LED lamp on installation (lamp colour and wattage). Fitting the bezel is a simple twist and lock process, making future lamp and bezel changes quick and stress free .
Allows for customisation of IP rating, with IP20 and IP65 rated interchangeable bezels available, The IP20 Bezel is suitable for installation all throughout the home including bathrooms, outside of Bathroom Zone 2. When fitted with the IP65 Bezel the downlights can be used inside of Bathroom Zone 1 and is the perfect option for installation throughout bathrooms, wetrooms or as a showerlight.
Key Features:

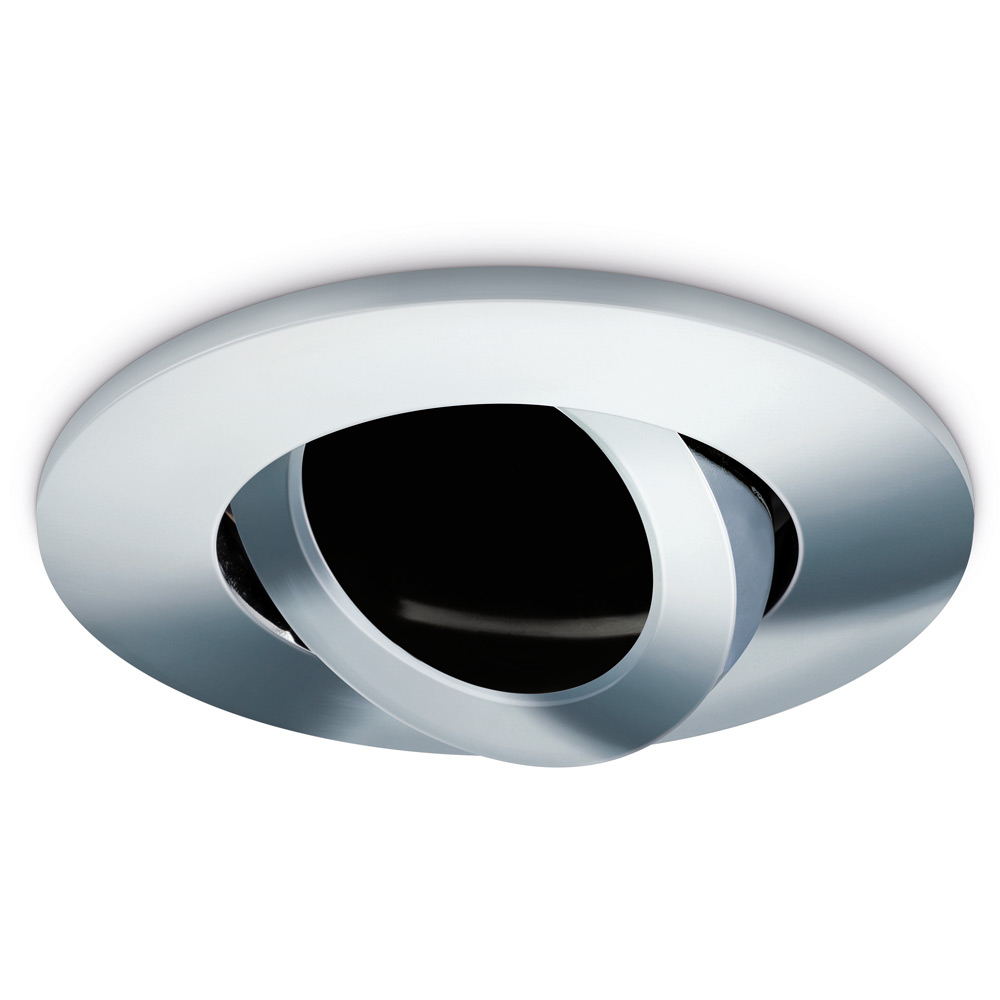

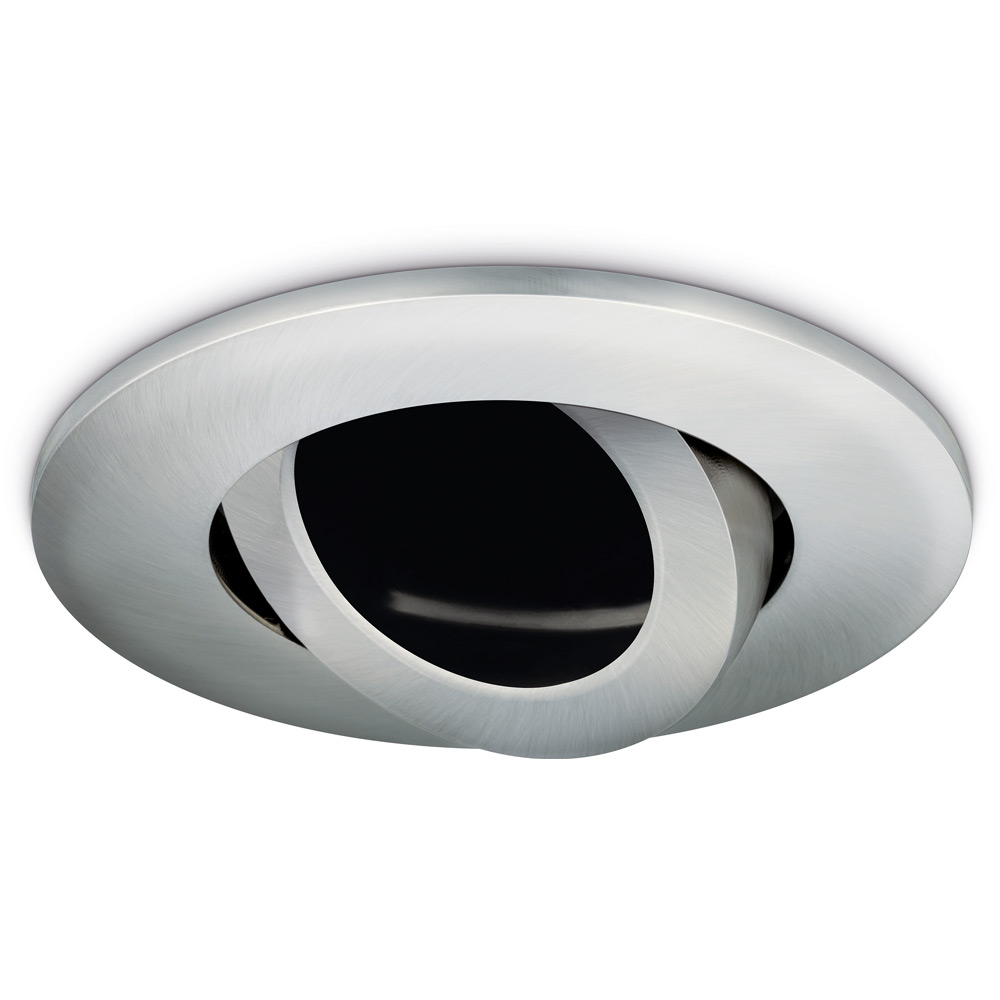

- Bezel not included, interchangeable aluminium bezel available in white, chrome or brushed nickel, perfect for usage all throughout the home
- Designed for GU10 LED lamps - lamp not included
- 15 ° adjustable tilt
- Cut-Out: 85mm
- Part B fire rating compliant- 30, 60 and 90 minute fire rating
- Airtight (Part C)
- Acoustic rated (Part E)
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- Ultra fast press fit,
- Loop in/out terminal
- Easy twist and lock bezel replacement
- Minimum void: 150mm
- Spring clip fixing
- IP Rating: IP20
- LED compatible
- Wattage: 7W LED maximum
- Construction: Die cast aluminium
- Class: Class 1, earth cable required
- Compatible with bulbs A+ to E
- Diameter: 100mm
- Depth: 115.45mm
- Weight: 0.264kg
- Standards: BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
- Warranty: 2 years
For any questions about this product or to learn more about Lightplan's design services, feel free to reach out. You can contact us by phone at 0208 342 7009, through our contact form, or by emailing sales@lightplan.co.uk.
Would you prefer to speak with a lighting expert face-to-face? Visit your nearest Lightplan showroom, where our lighting experts are ready to assist.
| Light Fitting | LED GU10 (not included) |
| Fitting Type | Tilt (Adjustable) Downlight |
| Mounting | Recessed Ceiling |
| Fire Rating | 30/60/90 Minute |
| Bezel Colour | N/A |
| Bezel Included | Not Included |
| Install Location: | Bedroom, Kitchen, Hallway, Living Space |
| Max Wattage | 7W LED |
| Dimmable | Lamp Dependent |
| Energy Rating | A+ to E |
| Connector | Press Fit Terminals |
| Class | I, Earth Required |
| Dimensions (Diameter x D): | 100mm x 115.45mm |
| Diameter | 100mm |
| Cut Out | 85mm |
| Minimum Ceiling Void | 150mm |
| Type of Use | Indoor |
| RIm Material | Die-cast Aluminium |
| Method of Fix | Spring Clips |
| IP Rating | IP20 |
| Weight | 0.171kg |
| Voltage | 230V |
| Warranty | 2 Years Standard |
| Building Regulations | Part B, C and E |
| Standards | BS EN 60598-2-1, 2-2 |
| CE Marked | Yes |
