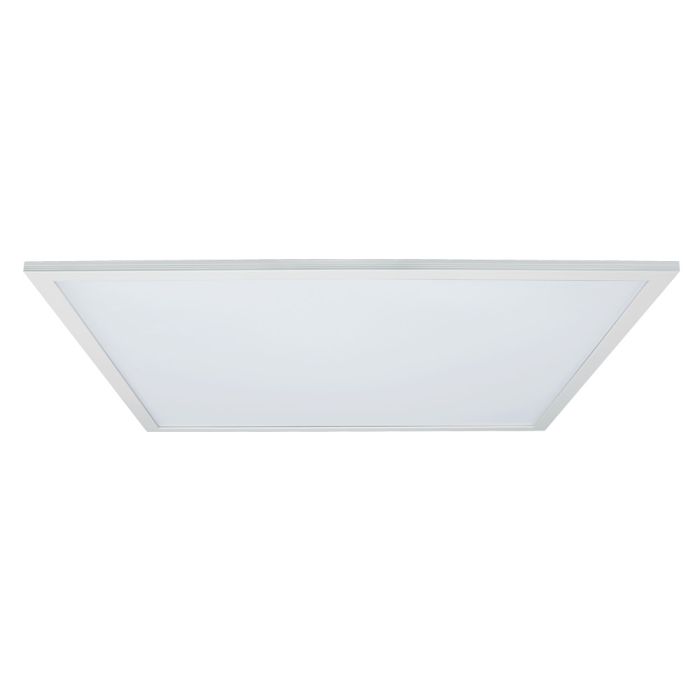

JCC Skytile LED Panel TPa 600x600mm 30W 4000K Cool White

The JCC Skytile JC080104 UGR19 LED Panel is an exemplary lighting solution engineered to deliver low glare illumination while ensuring an even distribution of light across various environments. This panel is meticulously designed to meet the stringent requirements of BS EN 12464-1, which governs the lighting of workspaces, making it an ideal choice for office, retail, and commercial settings. The JC080104 can be seamlessly integrated into existing infrastructures, as it is suitable for both recessed fitting and suspension, although it should be noted that the suspension kit is not included.

With an impressive efficacy of 100 lumens per watt, the JC080104 not only provides exceptional brightness but also promotes energy efficiency, making it a sustainable choice for modern lighting needs. The panel is equipped with an IP44 rating, offering protection against dust and water splashes, which is particularly beneficial in environments where moisture may be present. Additionally, the non-dimmable flicker-free driver included as standard ensures a stable and comfortable lighting experience, free from the distractions of flickering lights.

Key Features:

• LED Skytile
• Meets TP(A) Requirements
• UGR
• Complies with BS EN 12464-1 Lighting of Workspace
• Comes Complete with Non-Dimmable Flicker Free Driver
• Recessed Mounting (150mm Minimum Void Requirement)
• Auto-Recovery Thermal Cut-Out
• Operating Temperature Range: -25 °C - +45 °C
• LED Life Hours: 54000
• Voltage: 220-240V
• Primary Running Current: 0.2A
• Inrush Current: <15A
• Operating Frequency: 50/60Hz
• Secondary Running Current: 700mA
• Constant Current
• Luminaire Circuit Wattage: 30
• Class: II
• Output Voltage Max/Range: 27-45VDC
• Total Harmonic Distortion: 20% THD
• Light Source: LED
• Energy Rating: F
• Actual Lumen Output: 3000
• Lumens Per Circuit Watt: 100LpcW
• Standard Deviation Colour Matching: <6
• Colour Rendering Index: 80-89
• CRI:Ra: 80
• Correlated Colour Temperature: 4000K Neutral White
• Deam Angle: 90 °C
• LOR: 100%
• IP Rating: IP44
• Dimensions (HxWxL): 9.8mmx595mmx595mm
• Weight: 2.3kg
• Standards & Approvals: CE< UKCA, WEEE, BS EN 60598-2-2
• Warranty: 4 Years Standard, Extends to 5 if Registered with JCC Within 1 Year of Purchase
