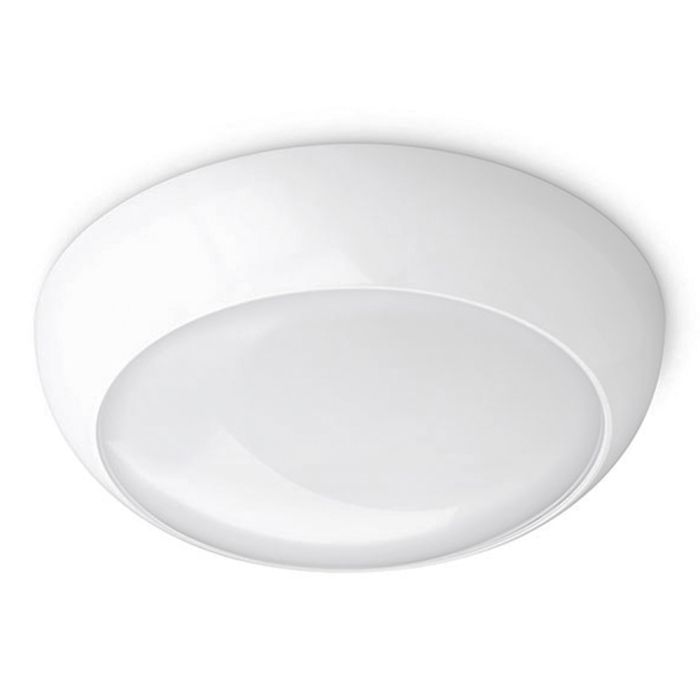

JCC RadiaLED 12W LED Emergency Microwave Bulkhead 4000K IP65

The JCC 12W RadiaLED Rapid Emergency and Microwave On/Off Bulkhead JC070080 is a state-of-the-art lighting solution designed to meet the needs of both interior and exterior environments. With its impressive energy-saving features and high lumen output, this bulkhead light is ideal for a range of applications, including communal hallways, stairwells, and commercial entrances.

Built to endure the demands of everyday use, the JCC RadiaLED bulkhead features an IK10 maximum impact rating, ensuring its durability in areas prone to vandalism. Additionally, with an IP65 rating, it is fully weatherproof, making it suitable for outdoor installations where exposure to the elements is a concern. The integrated microwave sensor offers automatic on/off functionality, enhancing energy efficiency while ensuring that areas remain well-lit when needed. In emergency situations, the bulkhead's emergency mode activates, providing essential illumination during power outages and thereby enhancing safety in critical areas such as offices, corridors, hotels, and warehouses.

Key Features:

• 12W LED emergency and microwave on/off bulkhead
• Battery life in emergency mode: 3 hours
• Emergency battery type: Li-ion (Lithium-ion)
• Battery recharge time: 24 hours
• Microwave distance: 0.5-8M adjustable
• Detection motion speed: 0.5-3m/s
• Detection range: 16M x 6M
• Installation height: 6M max
• Detection angle: 150 degrees (wall) or 360 degrees (ceiling mounted)
• Hold time: 5s, 30s, 60s, 3mins, 5mins, 10mins, 20mins, 30mins
• Lux settings: 2 lux, 10 lux, 25 lux, 50 lux, off
• Microwave frequency: 5.8GHz, ISM wave band
• Detachable terminal for simple wiring
• Multiple cable entry points including 4 side 20mm conduit entry
• Clip-in tool-less LED gear tray design
• Light source: LED
• Wattage: 12W
• Colour temperature: 4000K cool white
• CRI: >84
• Lumen output: 1250Lm
• LED efficacy: 104Lm/cW
• IP rating: IP65
• IK rating: IK10
• Beam spread: 116 °
• Diameter: 340mm˜
• Depth: 98mm
• Expected lifetime: 60,000 hours
• Bezel colour: White
• Dimmable: No
• Class: II
• Energy rating: F (previously A before the new energy label reclassification)
• Made from vandal-resistant polycarbonate base and diffuser
• Voltage: 230V
• CE standards: EN60598-2-1
• Guarantee: 2 years standard warranty, extended to 5 years when registered within the first year
