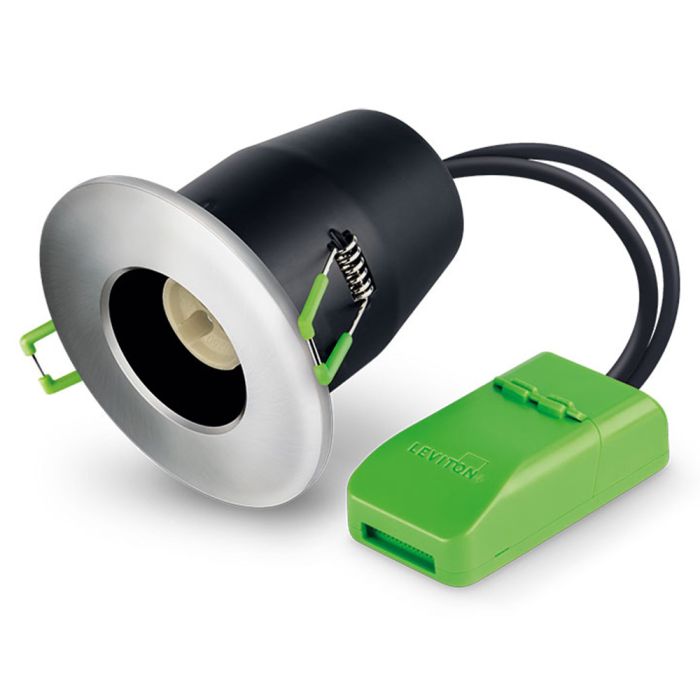

JCC Fireguard GU10 Downlight Brushed Nickel IP20
Product Code JC010010/BN
Available for Delivery only, change to Fast Delivery Service
£7.14
exc VAT
£8.57 : inc VAT
£8.57
inc VAT
£7.14 : exc VAT
The JCC Fireguard JC010010/BN Next Generation fire-rated fixed downlight is an excellent choice for both contractors and homeowners seeking a combination of functionality and contemporary design. Featuring a brushed nickel bezel, this downlight not only enhances the aesthetic appeal of any space but also ensures a streamlined installation process. The innovative design includes a shortened can, allowing for installation in shallower voids, while the tapered shape facilitates easier entry into ceilings. This thoughtful engineering improves the mobility of the spring clips, making the installation process more efficient.
Designed with safety and longevity in mind, the Fireguard downlight is insulation coverable, promoting airflow and ventilation for the LED, thereby extending its lifespan. With fire ratings of 30, 60, and 90 minutes, this downlight plays a crucial role in preventing the spread of fire, offering peace of mind to homeowners. The flexibility of the Fireguard allows users to choose GU10 LED lamps during installation, accommodating various lamp colours and wattages to suit individual preferences. The bezel fitting process is a straightforward twist and lock mechanism, ensuring that future lamp and bezel changes are quick and hassle-free.
Key Features:
- Brushed Nickel bezel included
- Designed for GU10 LED lamps - lamps not included
- Cut-Out: 74mm
- Part B fire rating compliant - 30, 60 and 90 minute fire rating
- Airtight (Part C)
- Acoustic rated (Part E)
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- Ultra-fast press fit
- Loop in/out terminal
- Easy twist and lock bezel replacement
- Minimum void: 150mm
- Spring clip fixing
- IP Rating: IP20
- LED compatible
- Wattage: 7W LED maximum
- Construction: Die-cast aluminium
- Class: Class 1, earth cable required
- Compatible with bulbs A+ to E
- Diameter: 87mm
- Depth: 108.7mm
- Weight: 0.264kg
- Standards: BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
- Product code: JC010010/BN
- JCC Warranty: 2 years
For any questions about this product or to learn more about Lightplan's design services, feel free to reach out. You can contact us by phone at 0208 342 7009, through our contact form, or by emailing sales@lightplan.co.uk.
Would you prefer to speak with a lighting expert face-to-face? Visit your nearest Lightplan showroom, where our lighting experts are ready to assist.
| Product Downloads | JCC Fireguard JC010010BN Data Sheet |
|---|---|
| Model Number | JC010010/BN |
| Brand | JCC |
| Range | Fireguard Next Generation |
| Light Fitting | LED GU10 (not included) |
| Fitting Type | Fixed Downlight |
| Mounting | Recessed Ceiling |
| Fire Rating | 30/60/90 Minute |
| Bezel Colour | Brushed Nickel |
| Bezel Included | Yes |
| Install Location: | Bedroom, Kitchen, Hallway, Living Space |
| Max Wattage | 7W LED |
| Dimmable | Lamp Dependent |
| Energy Rating | A+ to E |
| Connector | Press Fit Terminals |
| Class | I, Earth Required |
| Dimensions (Diameter x D): | 87mm x 108.7mm |
| Diameter | 87mm |
| Cut Out | 74mm |
| Minimum Ceiling Void | 150mm |
| Type of Use | Indoor |
| RIm Material | Die-cast Aluminium |
| Method of Fix | Spring Clips |
| IP Rating | IP20 |
| Weight | 0.171kg |
| Voltage | 230V |
| Warranty | 2 Years Standard |
| Building Regulations | Part B, C and E |
| Standards | BS EN 60598-2-1, 2-2 |
| CE Marked | Yes |
