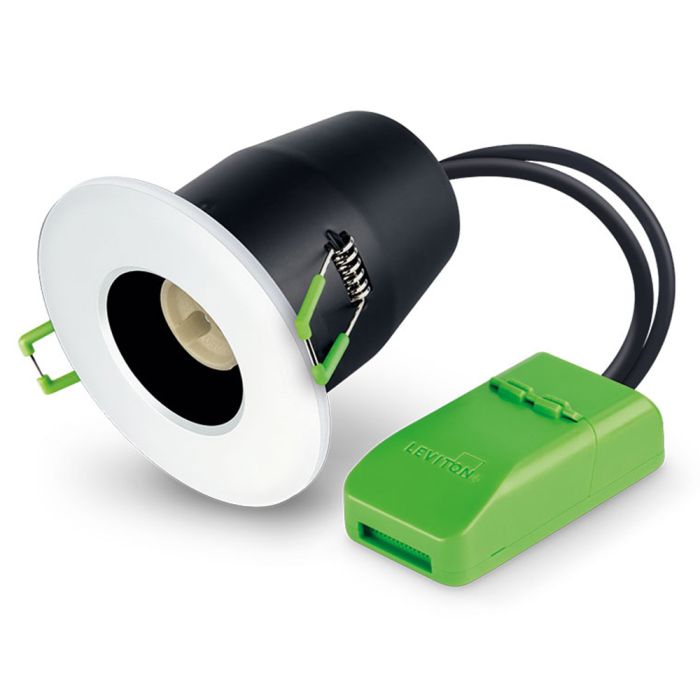

JCC Fireguard GU10 Downlight White IP20
Product Code JC010010/WH
Available for Delivery only, change to Fast Delivery Service
£6.96
exc VAT
£8.35 : inc VAT
£8.35
inc VAT
£6.96 : exc VAT
The JCC Fireguard JC010010/WH Next Generation fire rated fixed downlight is an exemplary choice for both contractors and homeowners seeking a blend of safety, efficiency, and modern design. This downlight features a sleek white bezel that complements any interior decor while ensuring a streamlined installation process. With a shortened can design, it is specifically engineered for use in shallower voids, making it an ideal solution for various ceiling types. The tapered shape enhances ease of entry into the ceiling, and the improved mobility of the spring clips further simplifies the installation.
Designed with safety and longevity in mind, the Fireguard downlight is insulation coverable, promoting airflow and ventilation for the LED, thereby extending its lifespan. It boasts a fire rating of 30, 60, and 90 minutes, effectively preventing the spread of fire and ensuring peace of mind for families. The flexibility of the Fireguard allows users to choose GU10 LED lamps during installation, with options for different lamp colours and wattages. The bezel fitting employs a simple twist and lock mechanism, facilitating quick and hassle-free changes in the future. Additionally, the interchangeable bezels offer customisable IP ratings, with IP20 suitable for general home use and IP65 ideal for installation in bathrooms and wet areas.
Key Features:
- White bezel included
- Designed for GU10 LED lamps - lamps not included
- Cut-Out: 74mm
- Part B fire rating compliant - 30, 60 and 90 minute fire rating
- Airtight (Part C)
- Acoustic rated (Part E)
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- Ultra-fast press fit
- Loop in/out terminal
- Easy twist and lock bezel replacement
- Minimum void: 150mm
- Spring clip fixing
- IP Rating: IP20
- LED compatible
- Wattage: 7W LED maximum
- Construction: Die cast aluminium
- Class: Class 1, earth cable required
- Compatible with bulbs A+ to E
- Diameter: 87mm
- Depth: 108.7mm
- Weight: 0.264kg
- Standards: BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
- Product code: JC010010/WH
- JCC Warranty: 2 years
For any questions about this product or to learn more about Lightplan's design services, feel free to reach out. You can contact us by phone at 0208 342 7009, through our contact form, or by emailing sales@lightplan.co.uk.
Would you prefer to speak with a lighting expert face-to-face? Visit your nearest Lightplan showroom, where our lighting experts are ready to assist.
| Product Downloads | JCC Fireguard JC010010WH Data Sheet |
|---|---|
| Model Number | JC010010/WH |
| Brand | JCC |
| Range | Fireguard Next Generation |
| Light Fitting | LED GU10 (not included) |
| Fitting Type | Fixed Downlight |
| Mounting | Recessed Ceiling |
| Fire Rating | 30/60/90 Minute |
| Bezel Colour | White |
| Bezel Included | Yes |
| Install Location: | Bedroom, Kitchen, Hallway, Living Space |
| Max Wattage | 7W LED |
| Dimmable | Lamp Dependent |
| Energy Rating | A+ to E |
| Connector | Press Fit Terminals |
| Class | I, Earth Required |
| Dimensions (Diameter x D): | 87mm x 108.7mm |
| Diameter | 87mm |
| Cut Out | 74mm |
| Minimum Ceiling Void | 150mm |
| Type of Use | Indoor |
| RIm Material | Die-cast Aluminium |
| Method of Fix | Spring Clips |
| IP Rating | IP20 |
| Weight | 0.171kg |
| Voltage | 230V |
| Warranty | 2 Years Standard |
| Building Regulations | Part B, C and E |
| Standards | BS EN 60598-2-1, 2-2 |
| CE Marked | Yes |
Recommended Products
MLEDV6.2WGU1036/930
£3.73 £4.48
£4.48: inc VAT £3.73: exc VAT
MLEDV6.2WGU1036/940
£3.73 £4.48
£4.48: inc VAT £3.73: exc VAT
MLEDV6.2WGU1036/965
£3.73 £4.48
£4.48: inc VAT £3.73: exc VAT
CLED4WGU1036/827D
£2.85 £3.42
£3.42: inc VAT £2.85: exc VAT
CLED4WGU1036/840D
£2.85 £3.42
£3.42: inc VAT £2.85: exc VAT
CLED4.6WGU1036/2700
£1.95 £2.34
£2.34: inc VAT £1.95: exc VAT
CLED4.6WGU1036/4000
£1.95 £2.34
£2.34: inc VAT £1.95: exc VAT

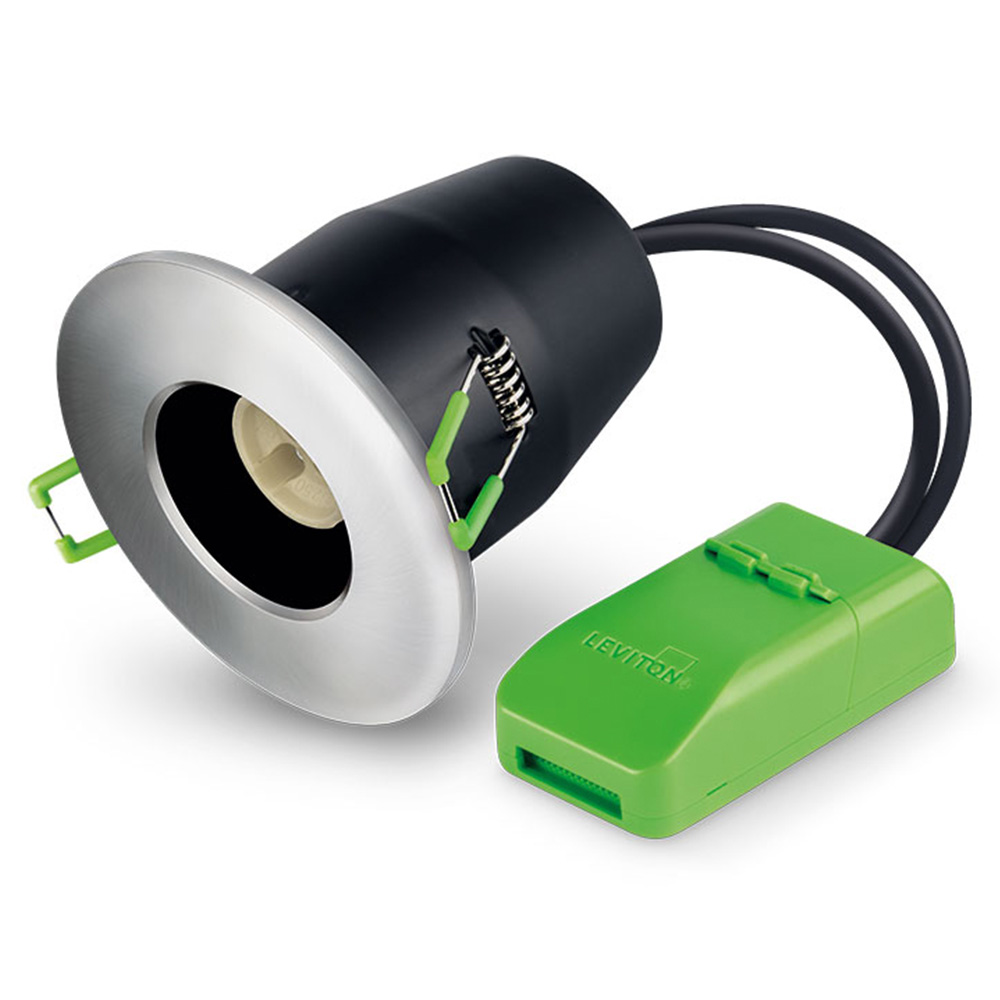

JC010010/BN
