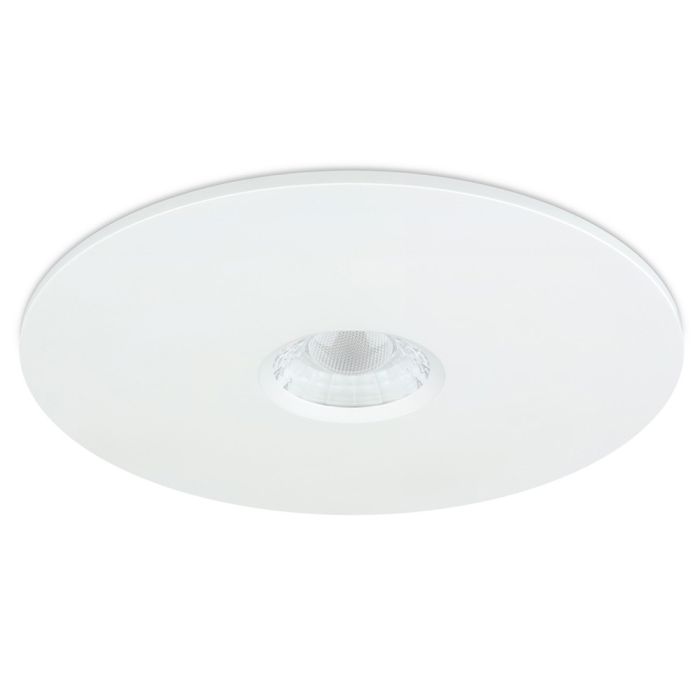

JCC V50 Pro Retrofit LED Downlight Dimmable IP65 170mm White

The JC-1017-WH V50 Pro retrofit slim-profile dimmable LED downlight is an innovative lighting solution designed to enhance both functionality and aesthetics in various environments. With a sleek design and a diameter of 170mm, this downlight offers the versatility of adjustable colour temperatures, allowing users to switch between warm 3000K and cool 4000K lighting to suit different moods and settings. Its 3mm white bezel is specifically engineered to cover existing fittings ranging from 70mm to 159mm, making it an ideal choice for retrofitting in shallow ceilings of just 50mm.

Designed with safety and practicality in mind, the JC-1017-WH downlight boasts an IP65 rating, making it suitable for installation in bathroom zones 1 and 2, where moisture resistance is crucial. This product eliminates the need for a fire hood when used with loose insulation, which simplifies the retrofitting process significantly.

Key Features:

• Slim profile 3mm white bezel
• Allows for retrofit where larger downlights were installed previously
• Covers ceiling cut-outs 70-159mm damaged from previous installations
• Low profile design for fittings in shallow 50mm ceiling voids
• Selectable colour temperature: either 3000K (warm white) or 4000K (cool white)
• IP65 rated, suitable for bathroom zones 1 and 2
• Tested for use in solid and I-joist ceilings
• Compatible with dimmers
• 30, 60, 90 minute fire rating
• Made from steel with a polycarbonate lens
• 650 lumens
• Lumens per Watt: 87lm/W
• LED lifetime of 51,000 hours
• CRI rating: 80
• Height: 54mm
• Diameter: 170mm
• Voltage: 230V
• Input electrical connections: Colour coded push-fit terminals LEN loop in/loop out
• Insulation coverage: Loosely cover with mineral wool insulation
• Guarantee: Up to 5 years
